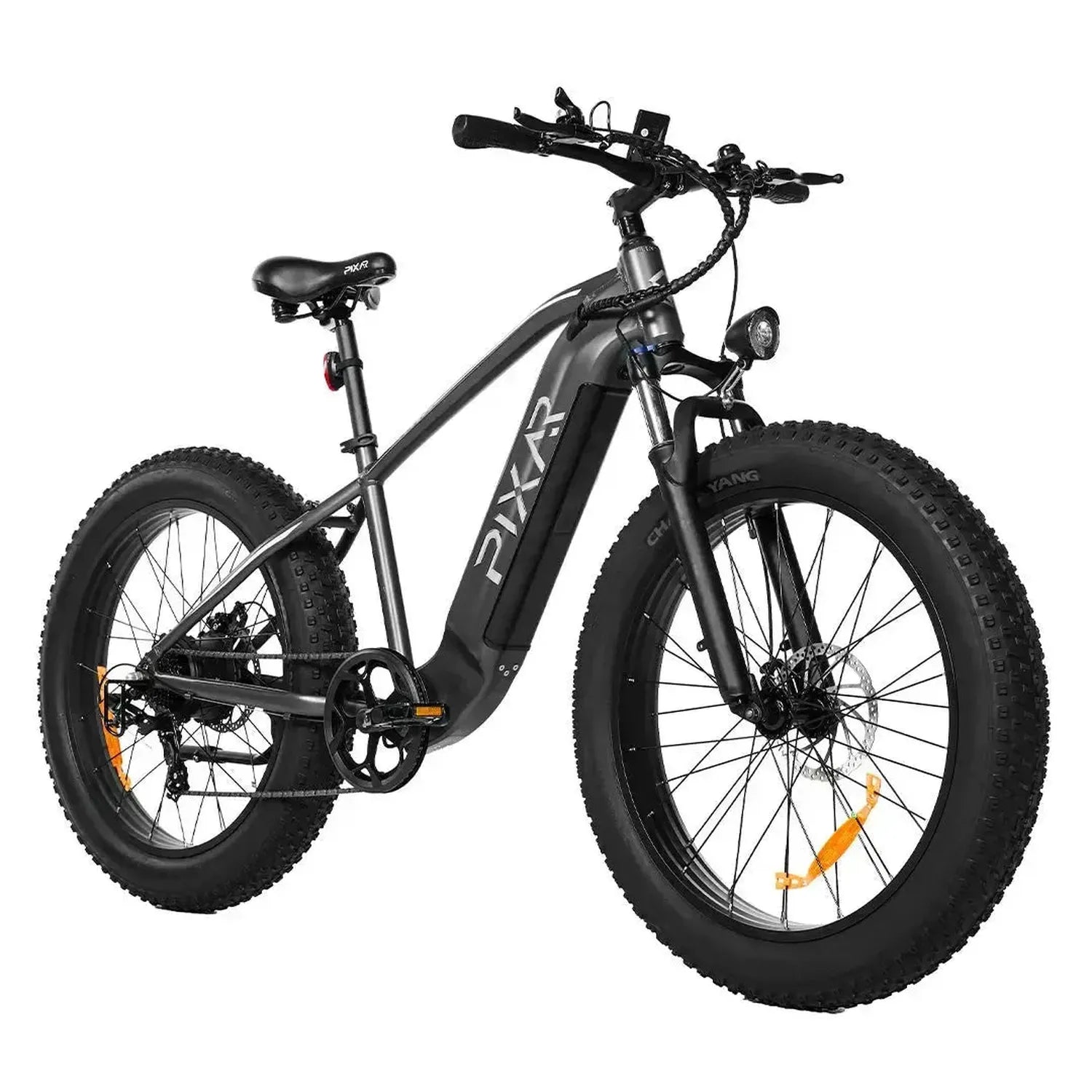

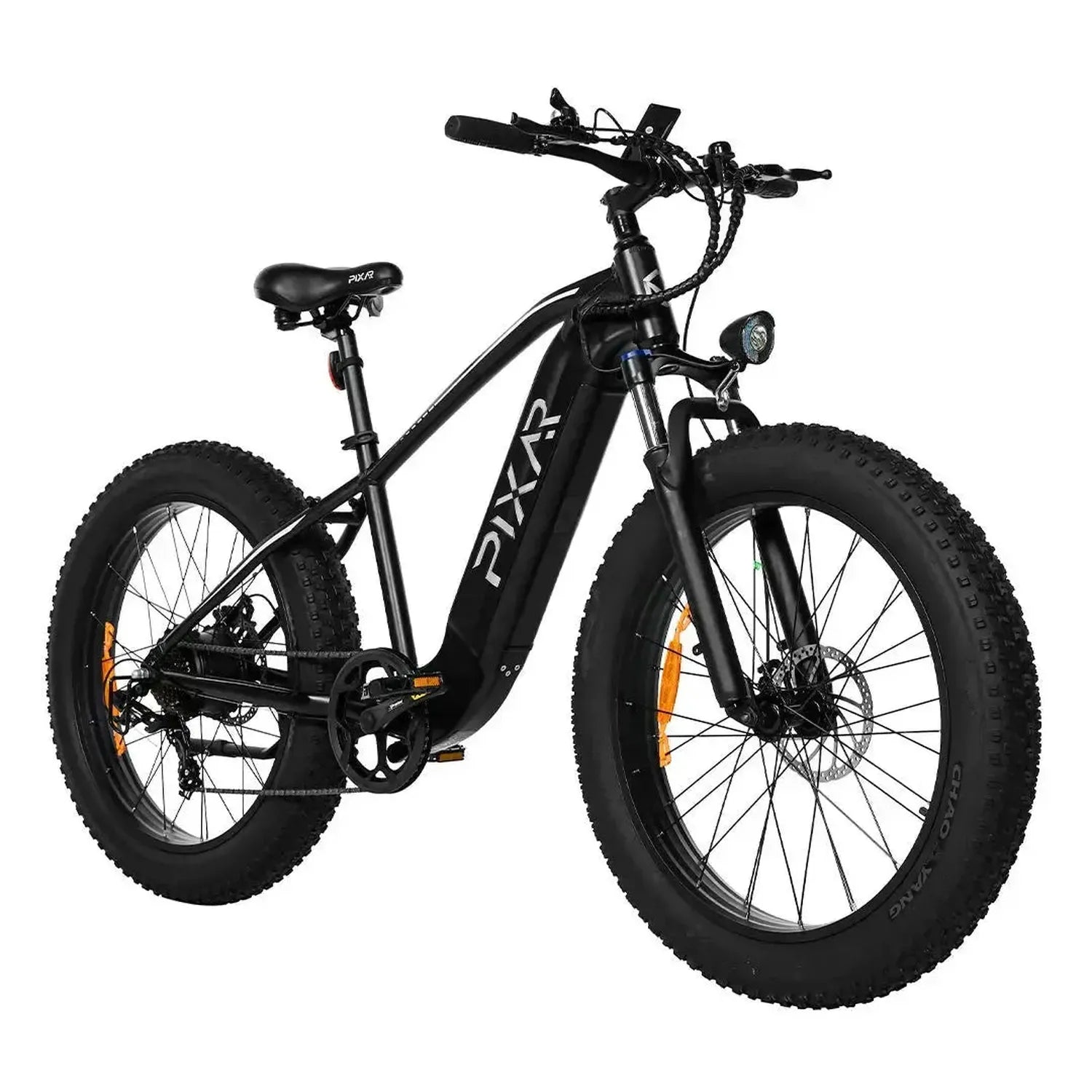

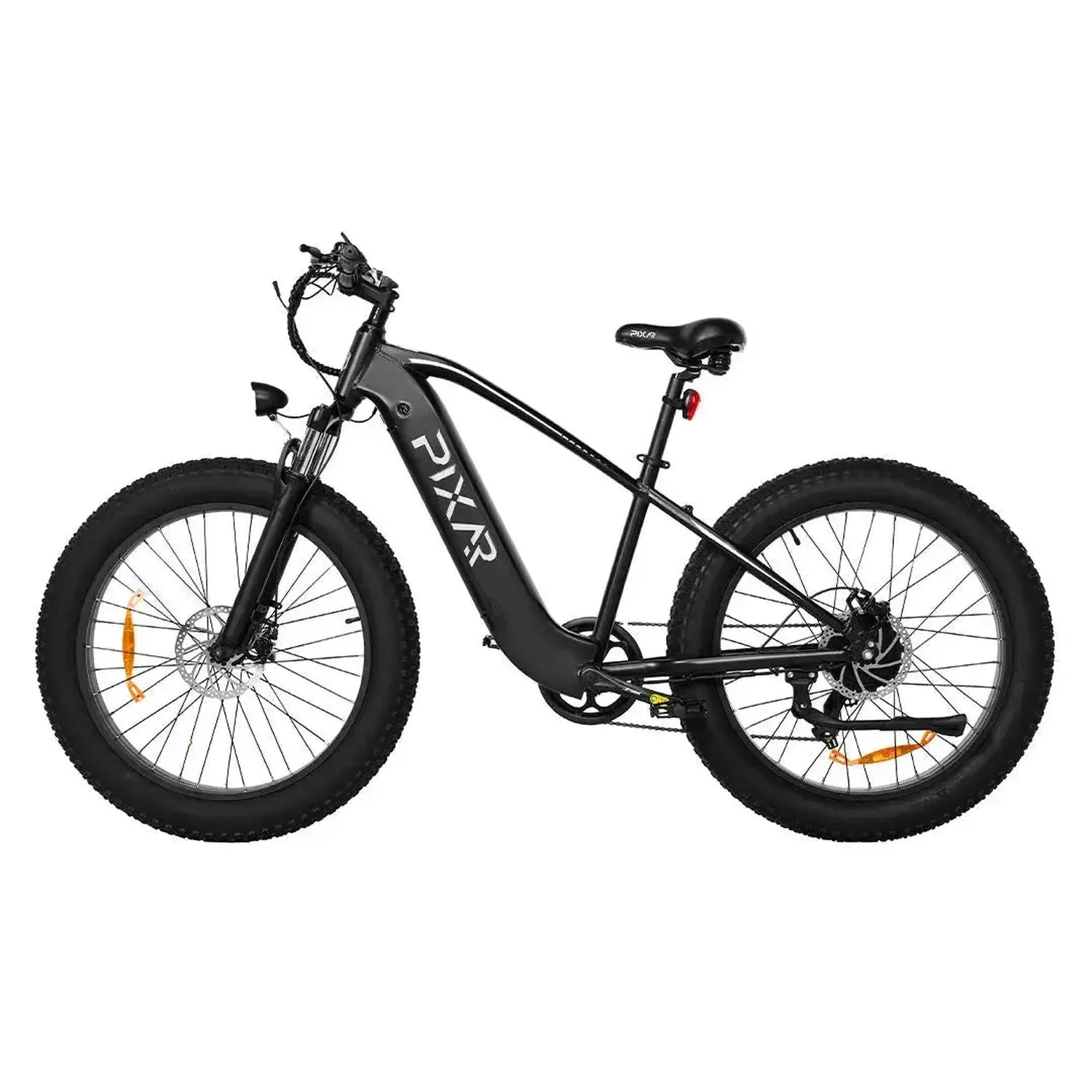

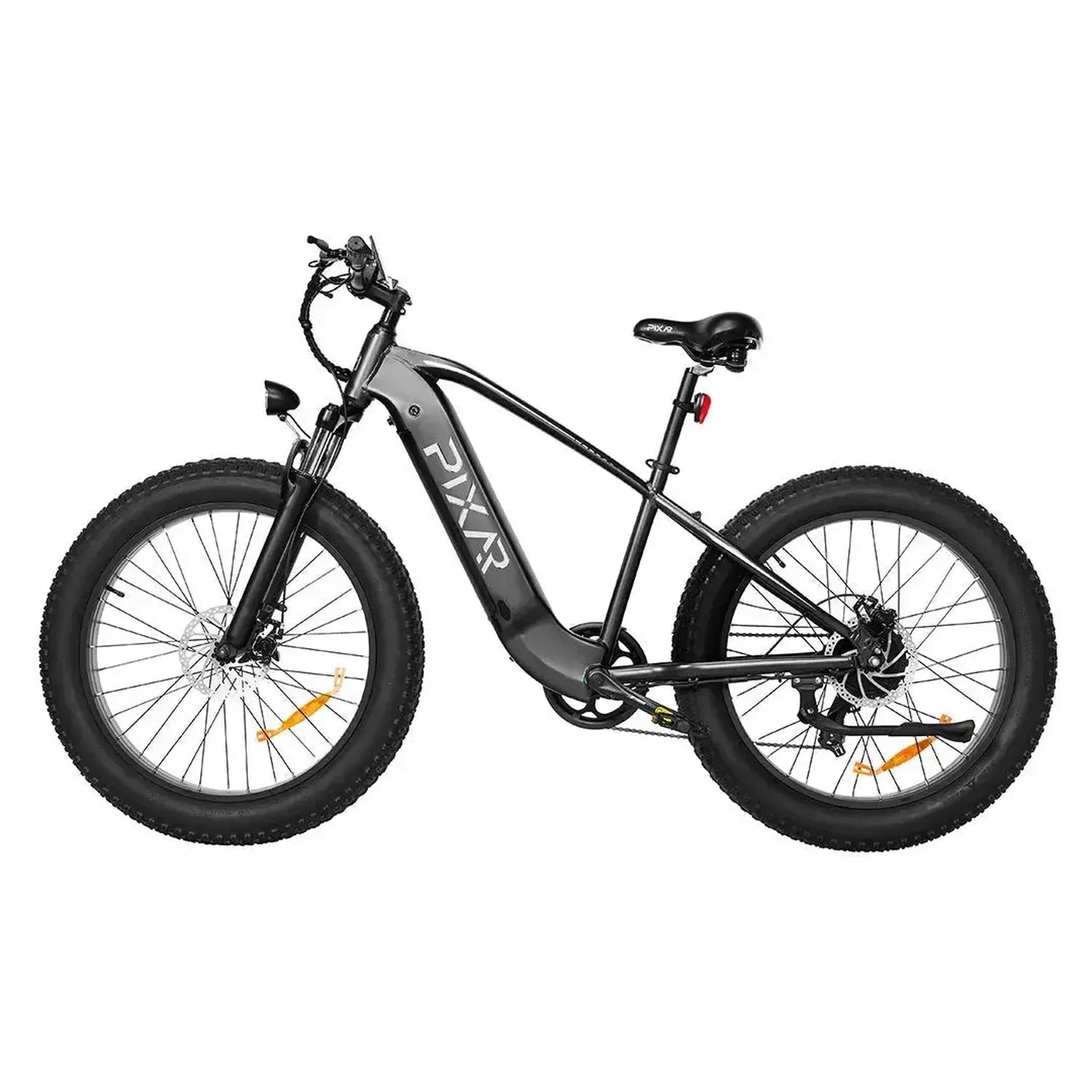

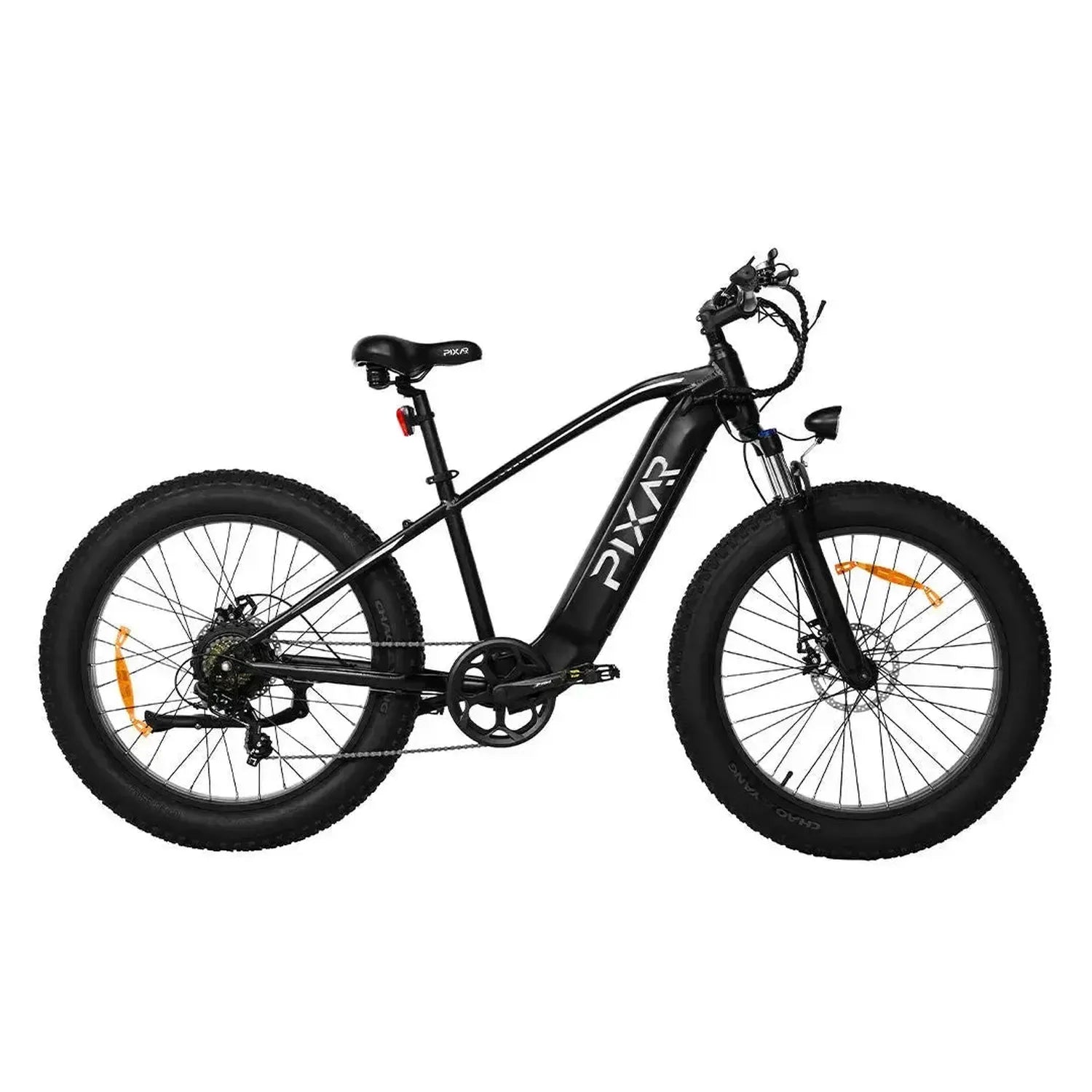

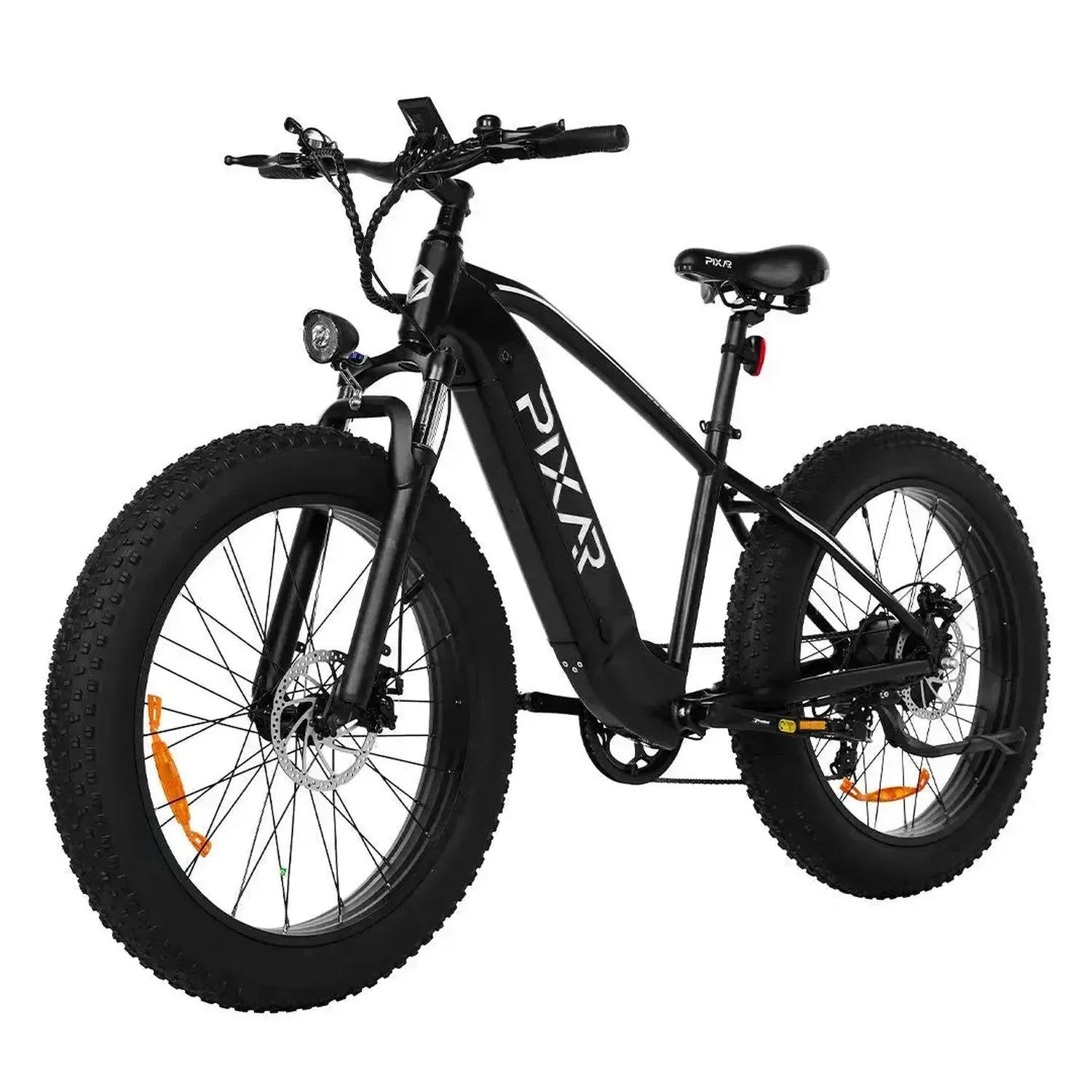

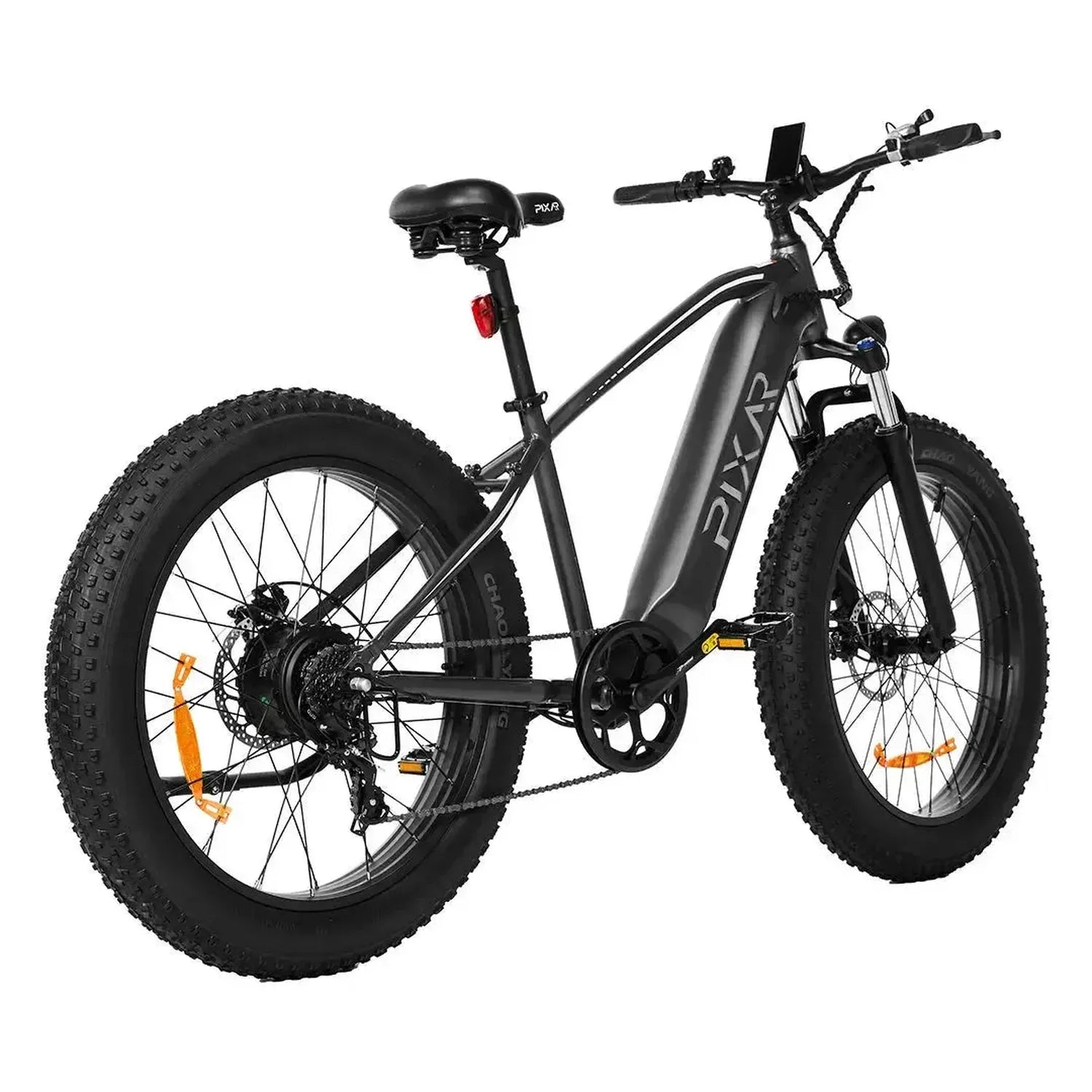

PIXAR Space1 Electric Bike

The PIXAR® Space1 Electric Bike is built for riders who want strength, stability, and long-range capability across both urban streets and rougher terrain. Designed with a durable aluminium alloy frame and wide fat tyres, the Space1 delivers excellent grip and control on pavement, gravel paths, sand, and light off-road trails.

A high-capacity removable lithium battery provides dependable range for longer rides and daily commuting, while the responsive pedal-assist system helps make hills and extended journeys easier. The bike’s front suspension fork and oversized tyres absorb bumps and uneven surfaces, creating a smooth and comfortable riding experience across varied terrain.

For everyday practicality, the Space1 includes disc brakes for reliable stopping power, a clear LCD display for ride information, integrated lighting for visibility, and a multi-speed drivetrain for adaptable riding. With its rugged design and long-range capability, the PIXAR Space1 Electric Bike is well suited for commuting, adventure rides, and riders looking for a powerful all-terrain eBike.

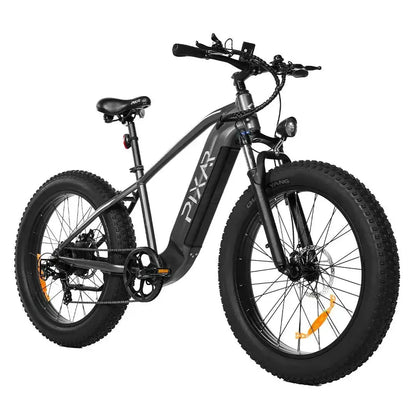

PIXAR Space1 Electric Bike

Specifications Breakdown

Model: PIXAR Space1

Bike Type: Fat-tire electric bike

Colour: Black, Silver

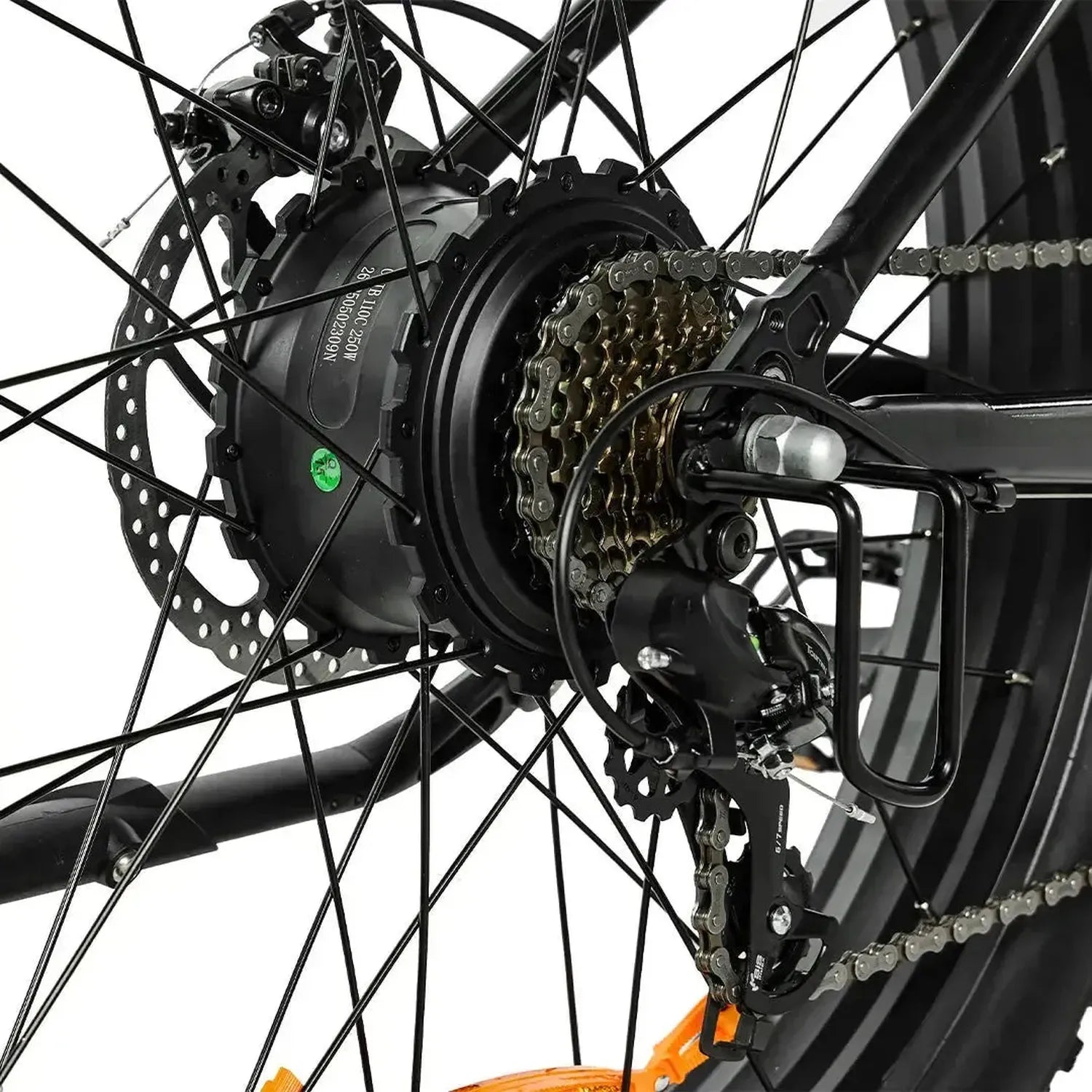

Motor Power: 500W rear hub motor

Peak Motor Output: Up to 750W peak

Top Speed: Up to 25 km/h (15.5 mph) standard / up to 32 km/h (20 mph) unlocked

Torque: 55 Nm

Battery: 48V 20Ah removable lithium battery

Battery Capacity: 960Wh

Range: Up to 60–100 km (37–62 miles)

Throttle Range: Up to 60–70 km (37–43 miles)

Pedal Assist Range: Up to 100–120 km (62–75 miles)

Charging Time: Approx. 4–5 hours

Charger: 54.6V 3A charger

Wheel Size: 26-inch wheels

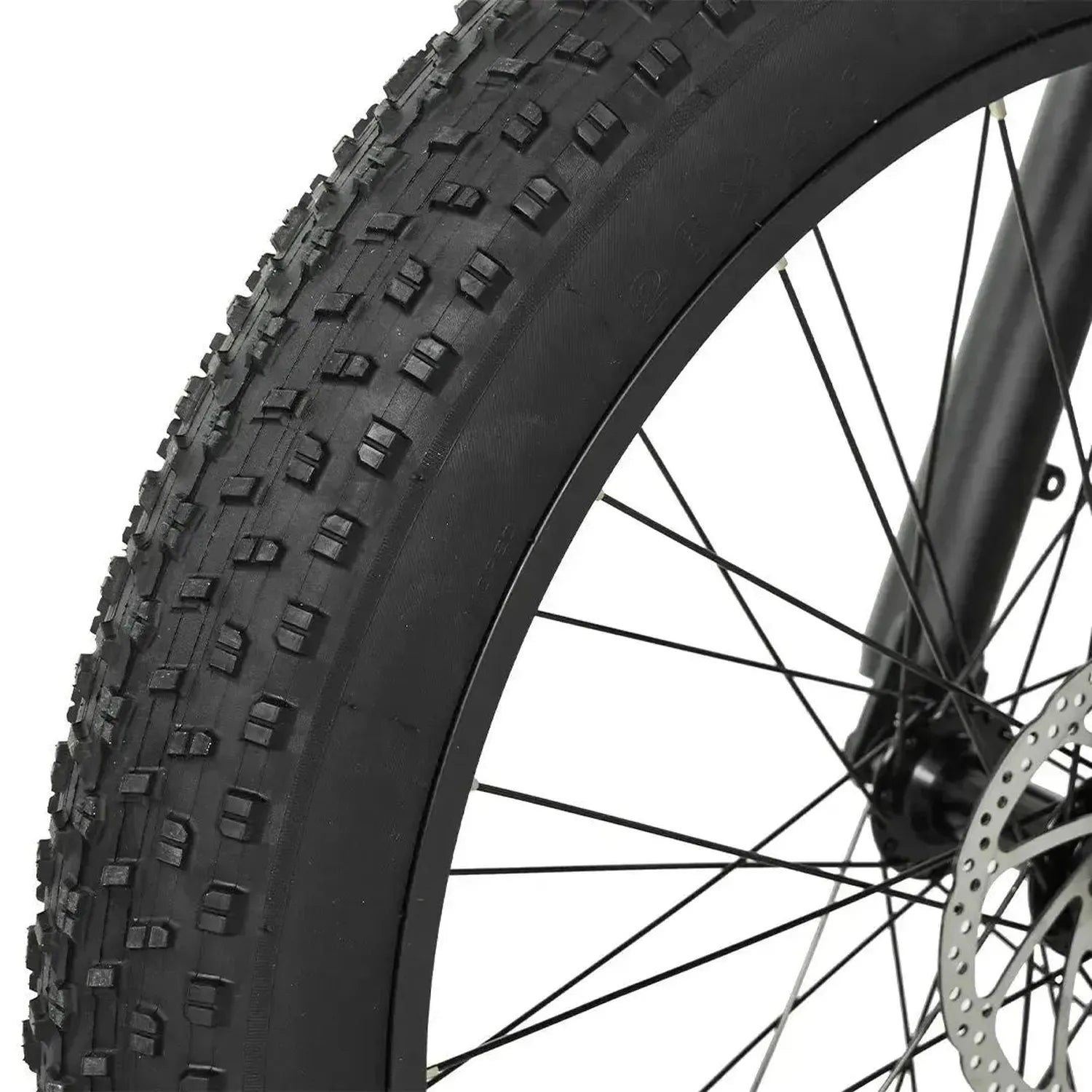

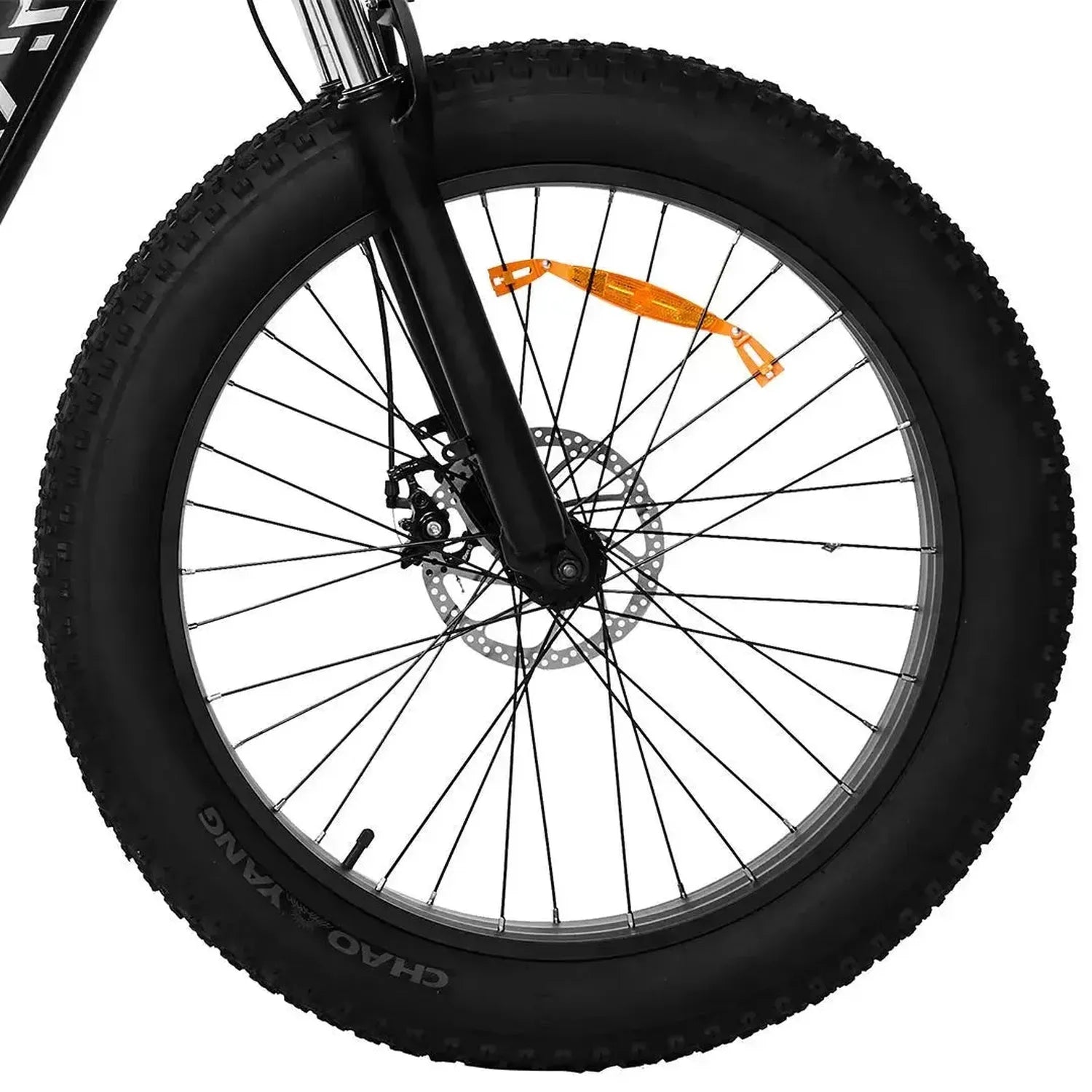

Tyres: 26 × 4.0-inch fat tyres

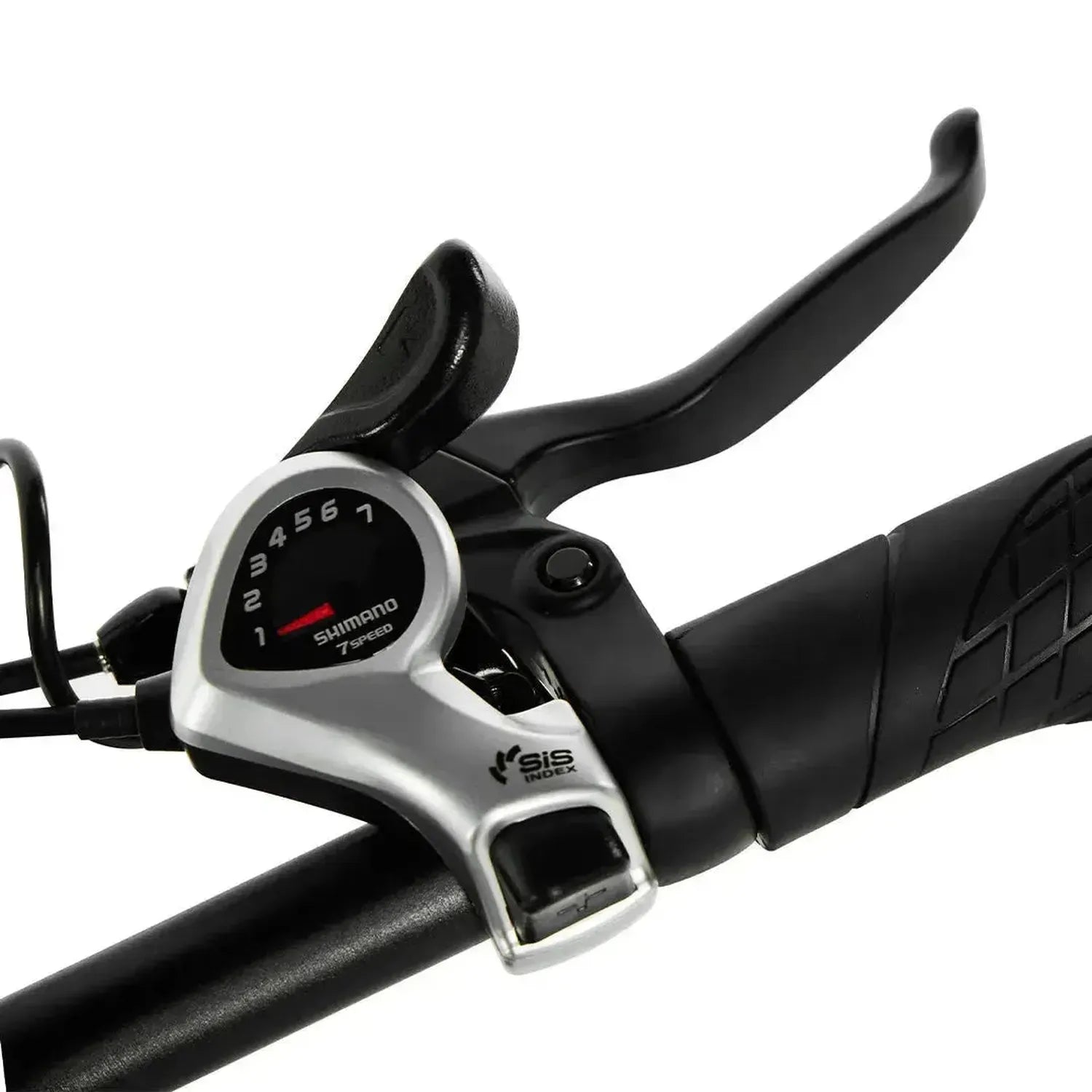

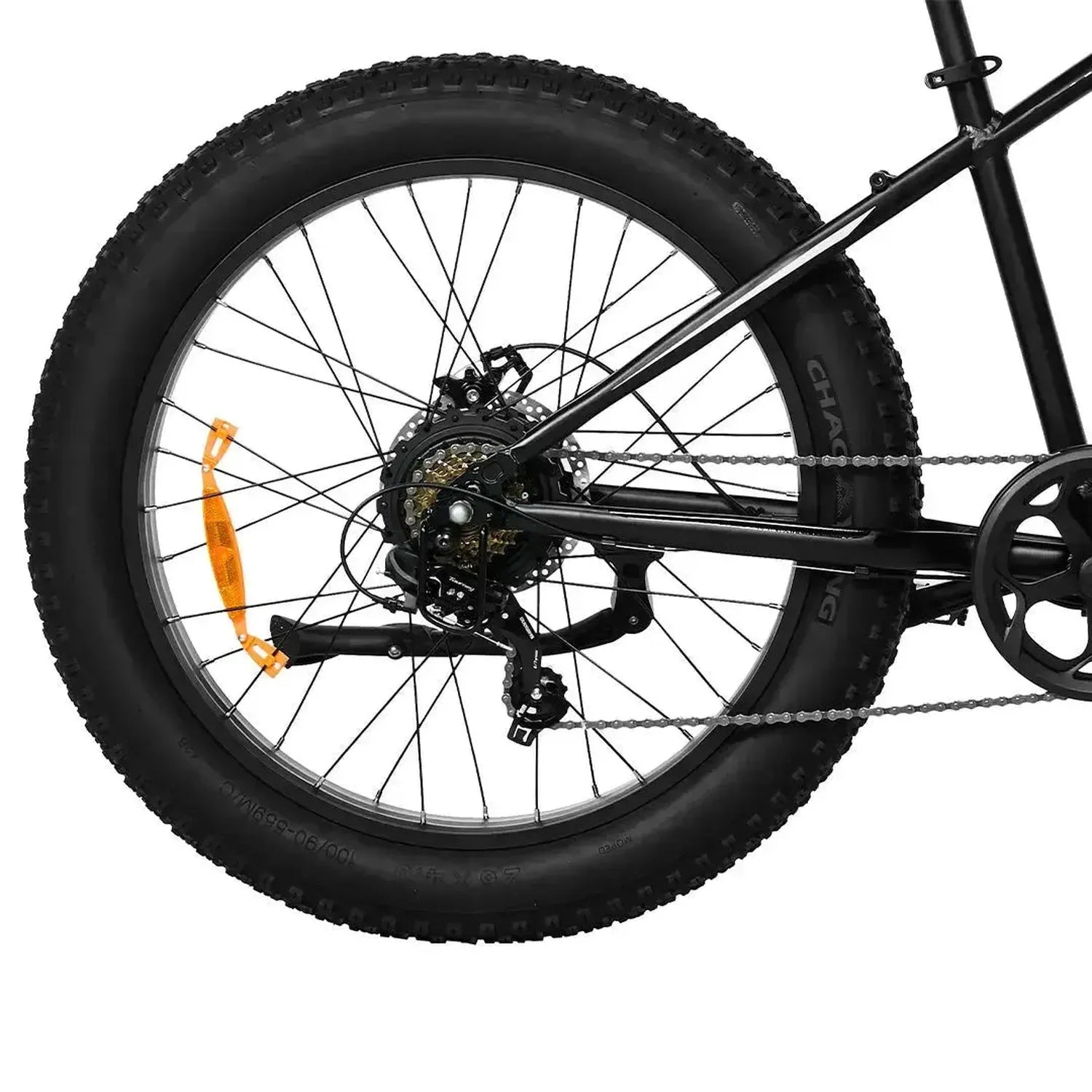

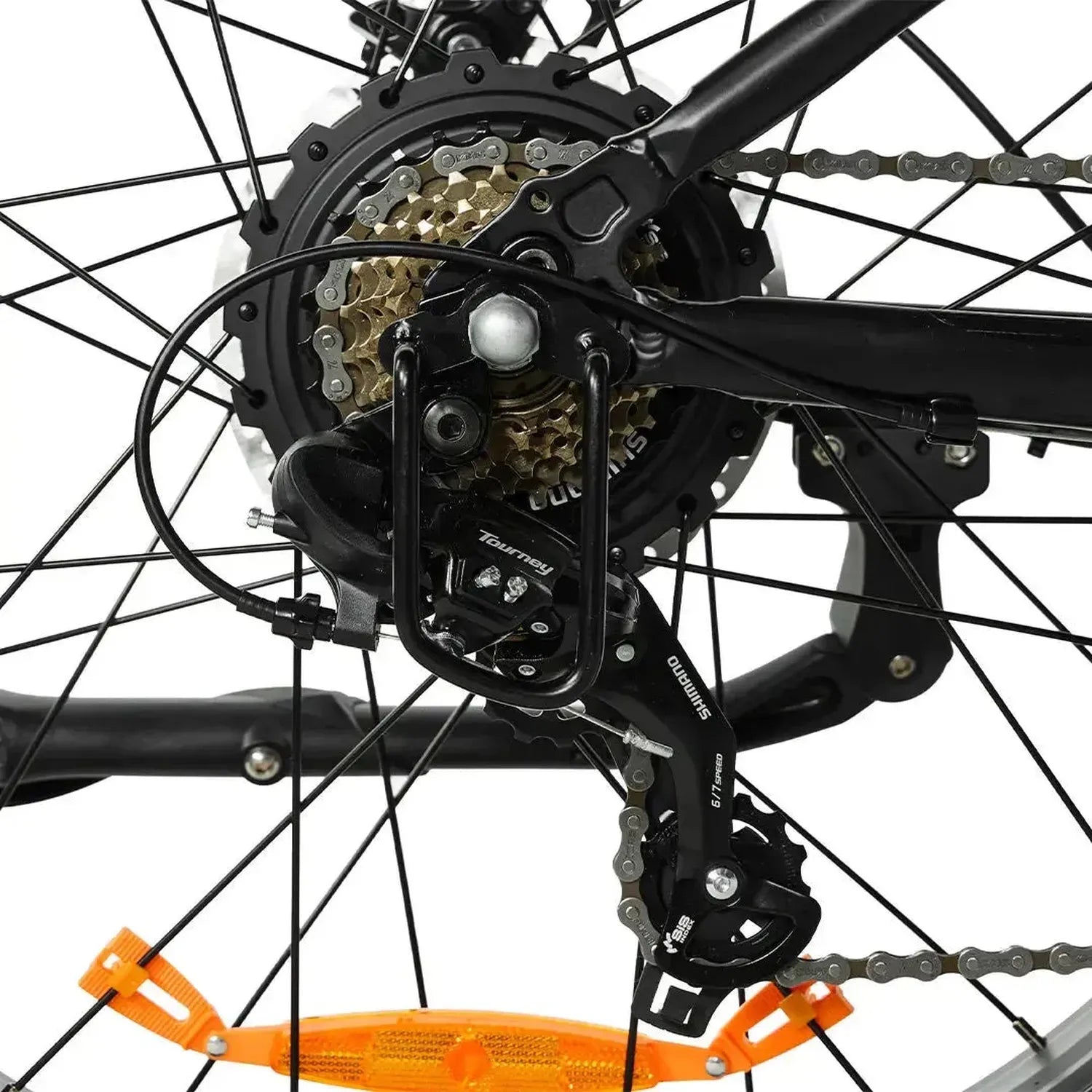

Gears: Shimano 7-speed gearing

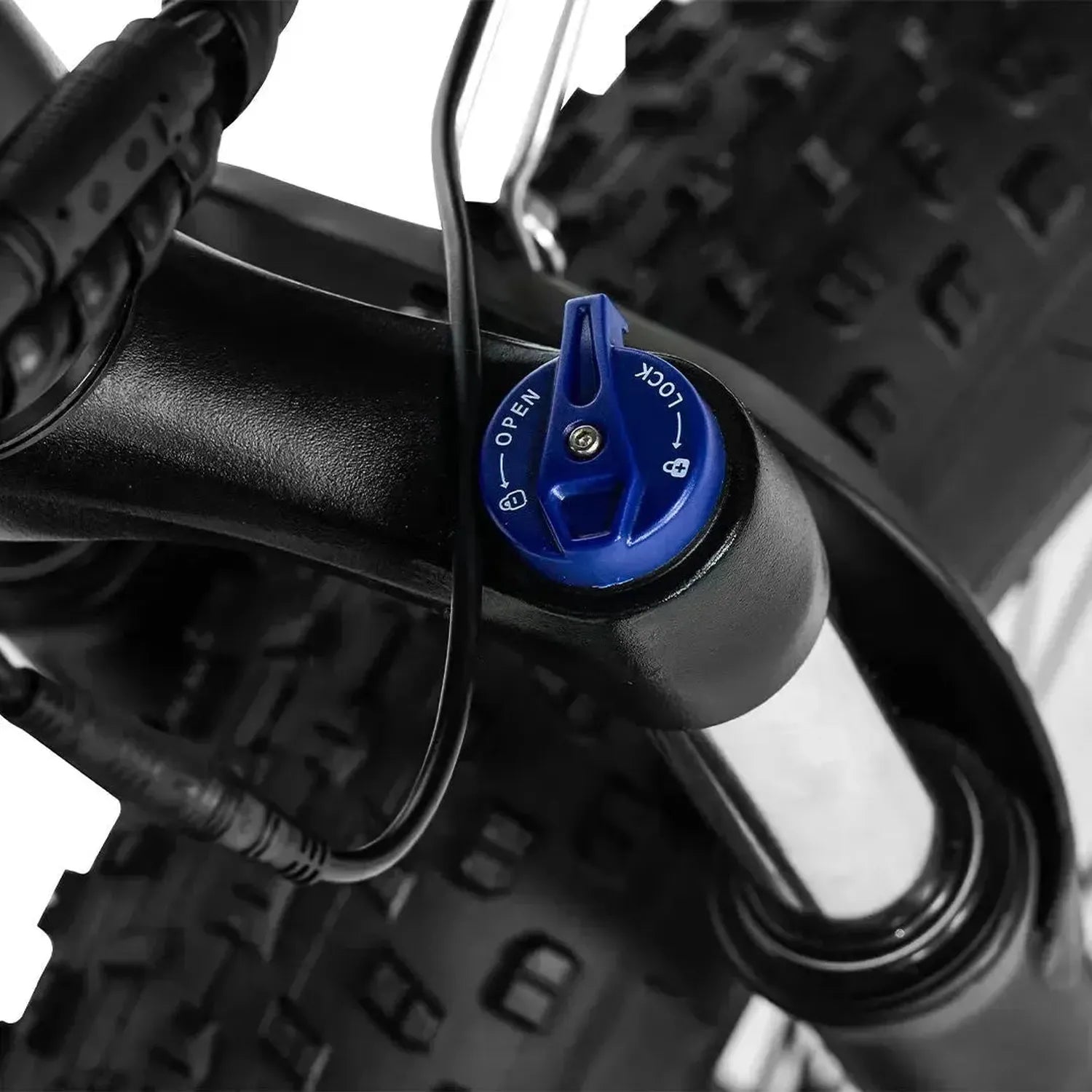

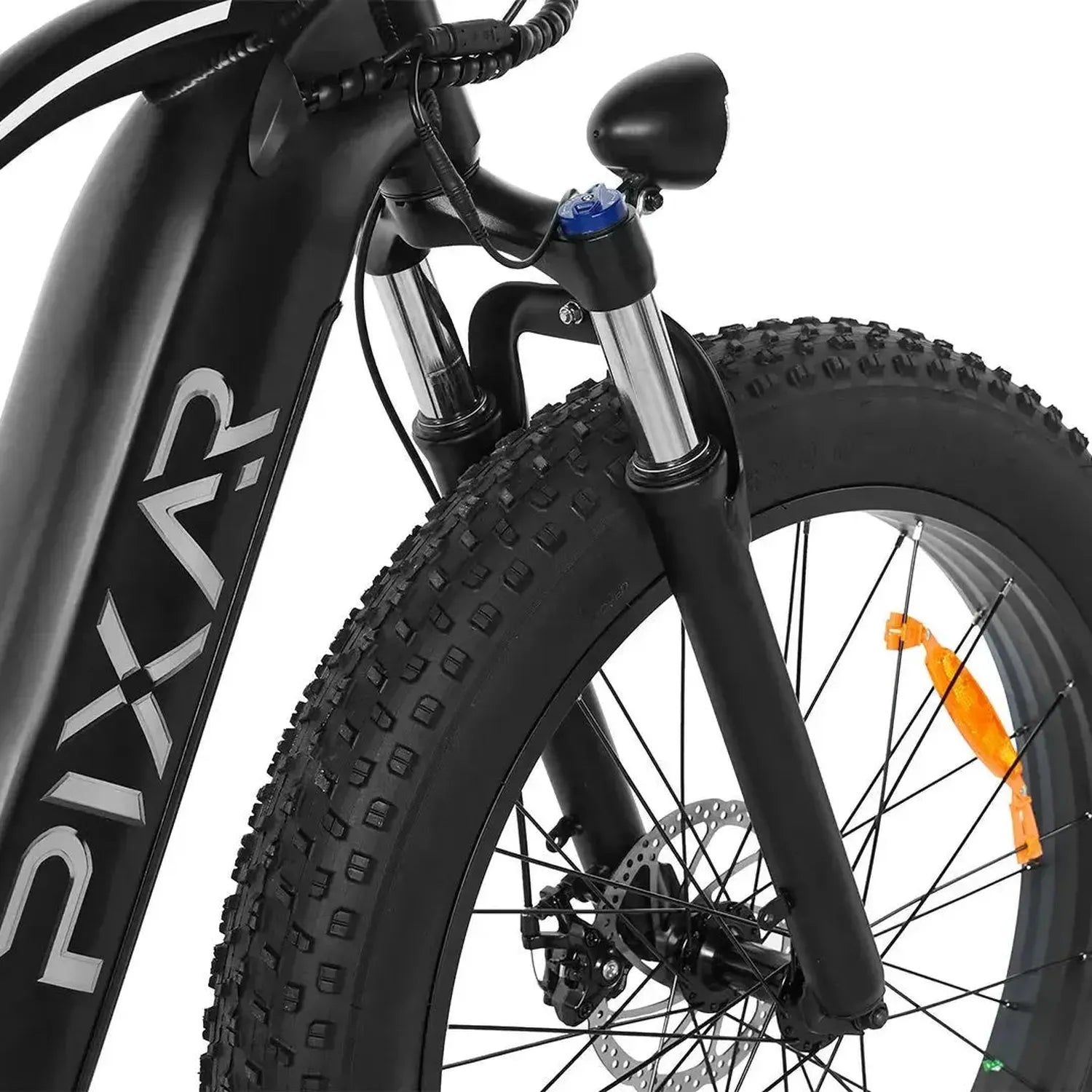

Suspension: Front suspension fork

Brakes: Front and rear mechanical disc brakes

Brake Rotor Size: 180 mm

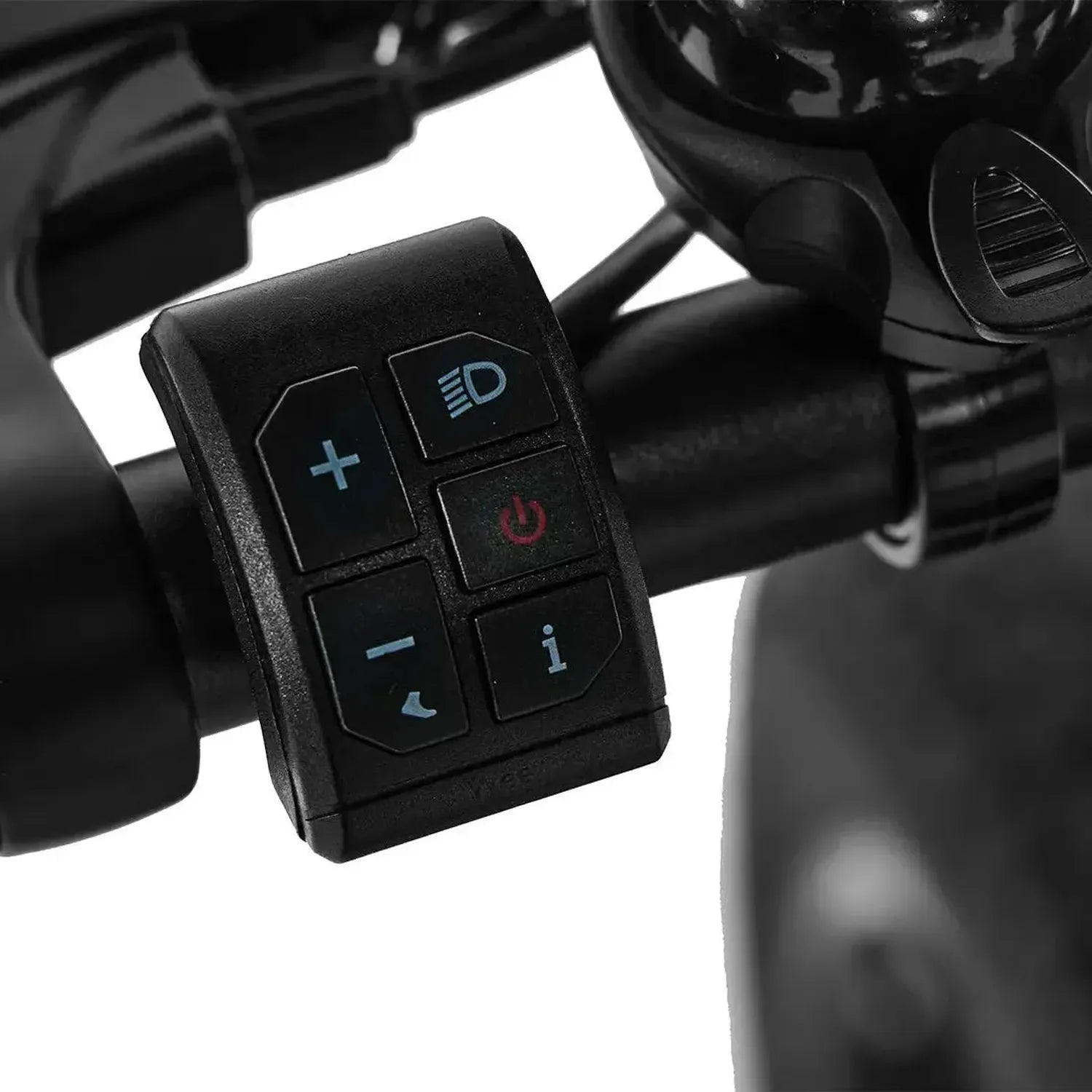

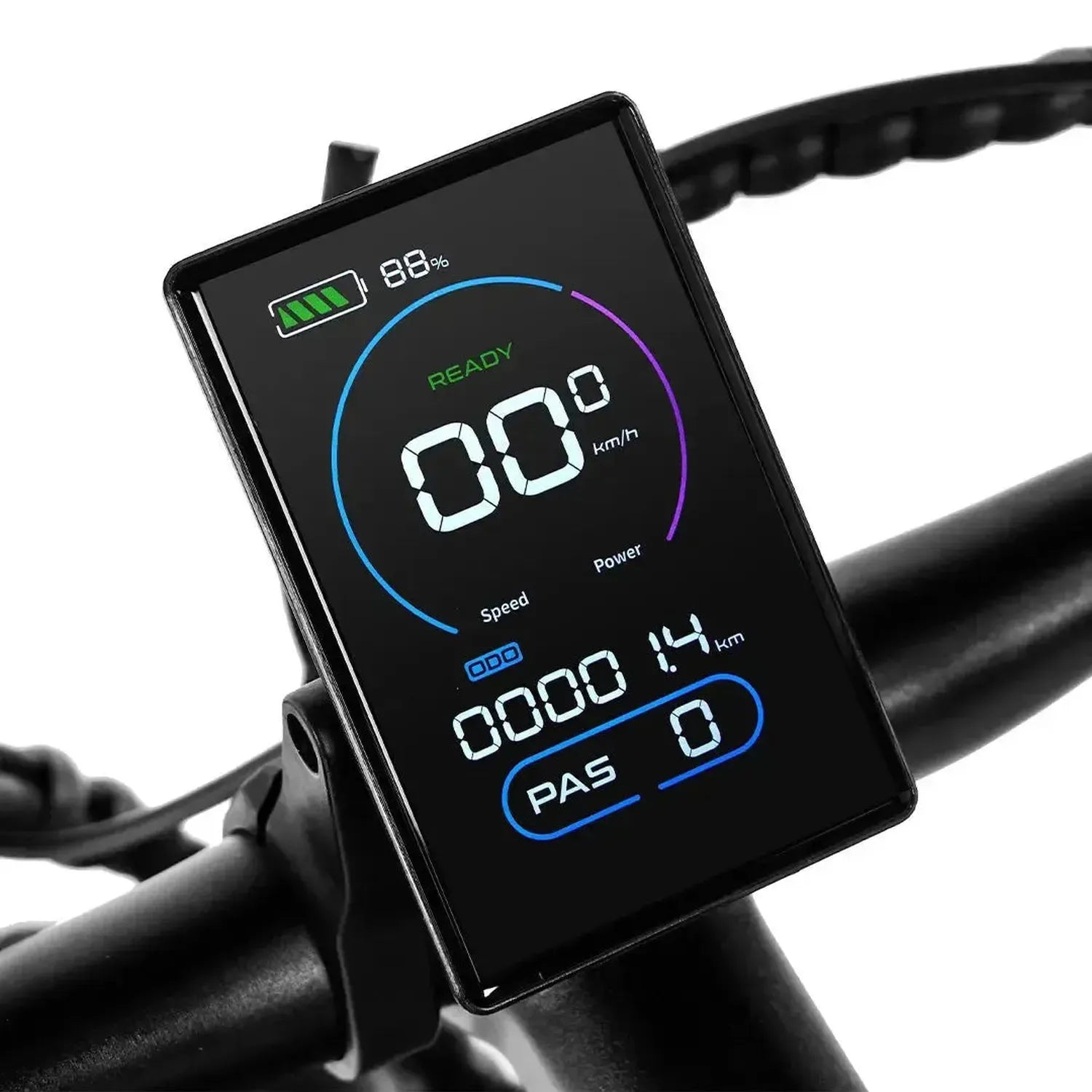

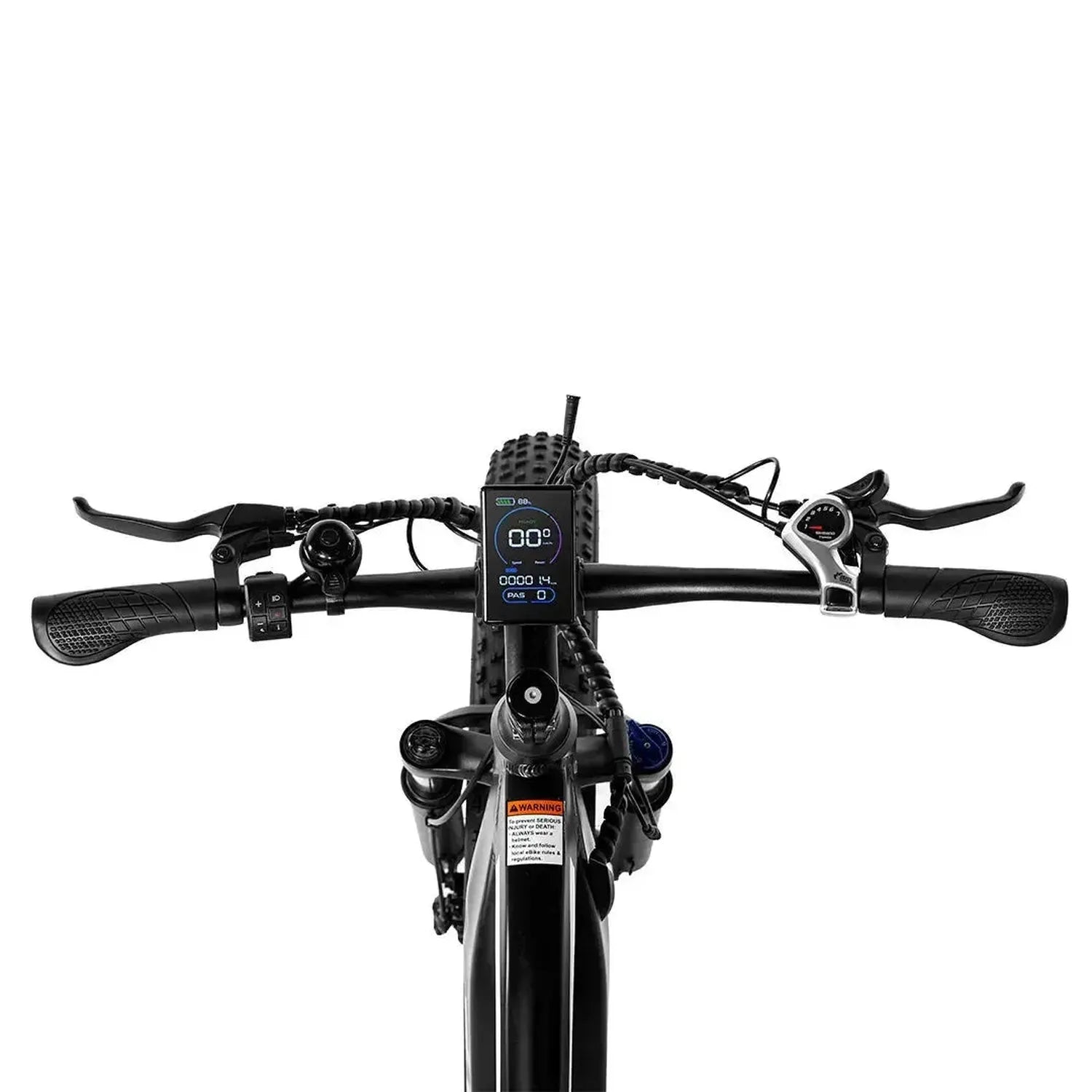

Display: Smart LCD display

Frame Material: 6061 aluminium alloy frame

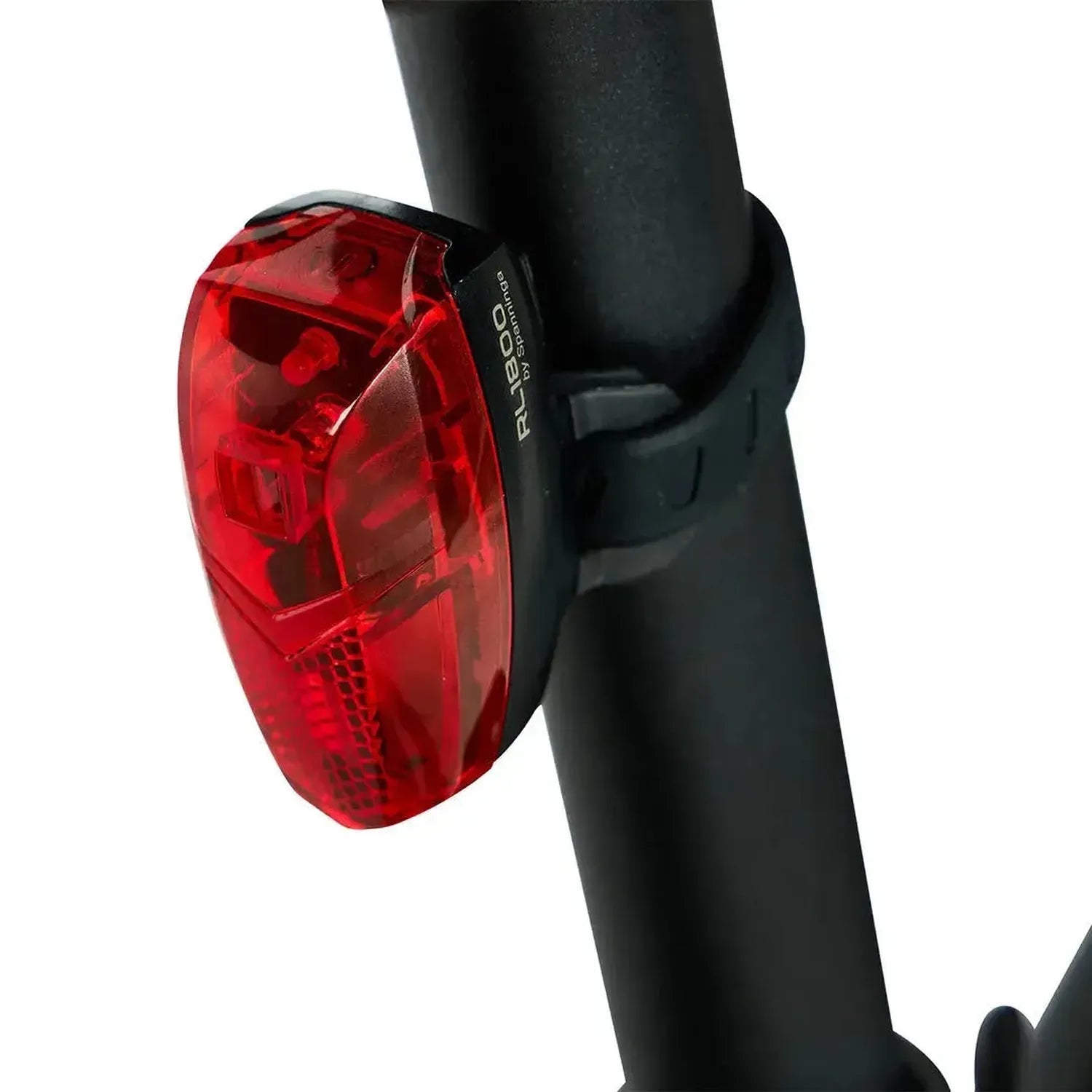

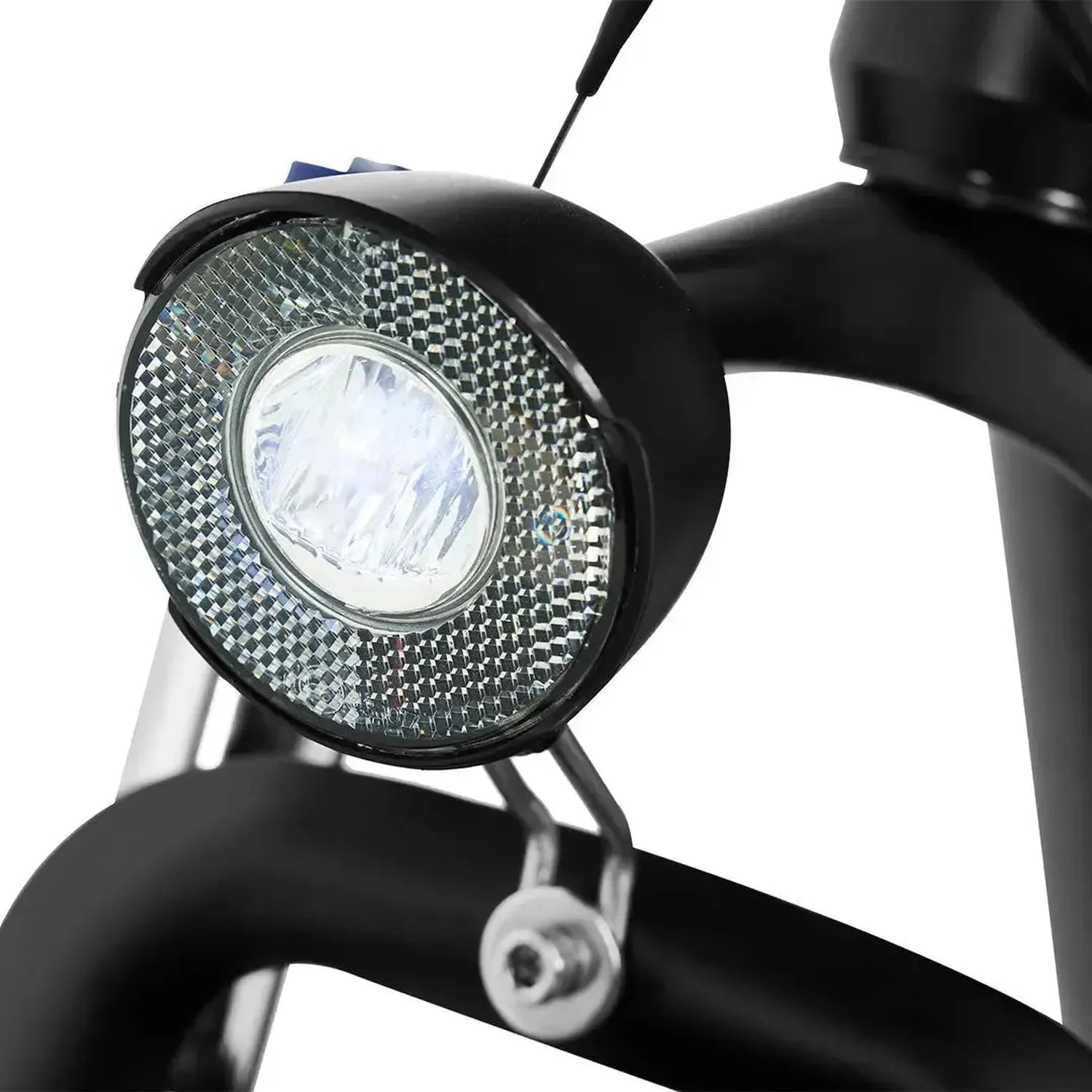

Lighting: Front LED headlight and rear light

Kickstand: Heavy-duty aluminium kickstand

Water Resistance: IPX6 battery / IP54 bike rating

Maximum Load: Up to 120 kg (265 lbs)

Bike Weight: Approx. 31.5–31.7 kg (69–70 lbs)

What is the top speed of the PIXAR Space1?

Up to 25 km/h (15.5 mph) as standard, with unlocked speed up to 32 km/h (20 mph).

How far can the PIXAR Space1 go on one charge?

Up to 60–100 km (37–62 miles), depending on riding mode, terrain, rider weight, and speed.

What battery does the PIXAR Space1 use?

48V 20Ah removable lithium battery with 960Wh capacity.

What tyres does the PIXAR Space1 use?

26 × 4.0-inch fat tyres.

Does the PIXAR Space1 have gears?

Yes, it comes with Shimano 7-speed gearing.

Does the PIXAR Space1 have suspension?

Yes, it comes with a front suspension fork.

What brakes does the PIXAR Space1 use?

Front and rear mechanical disc brakes.

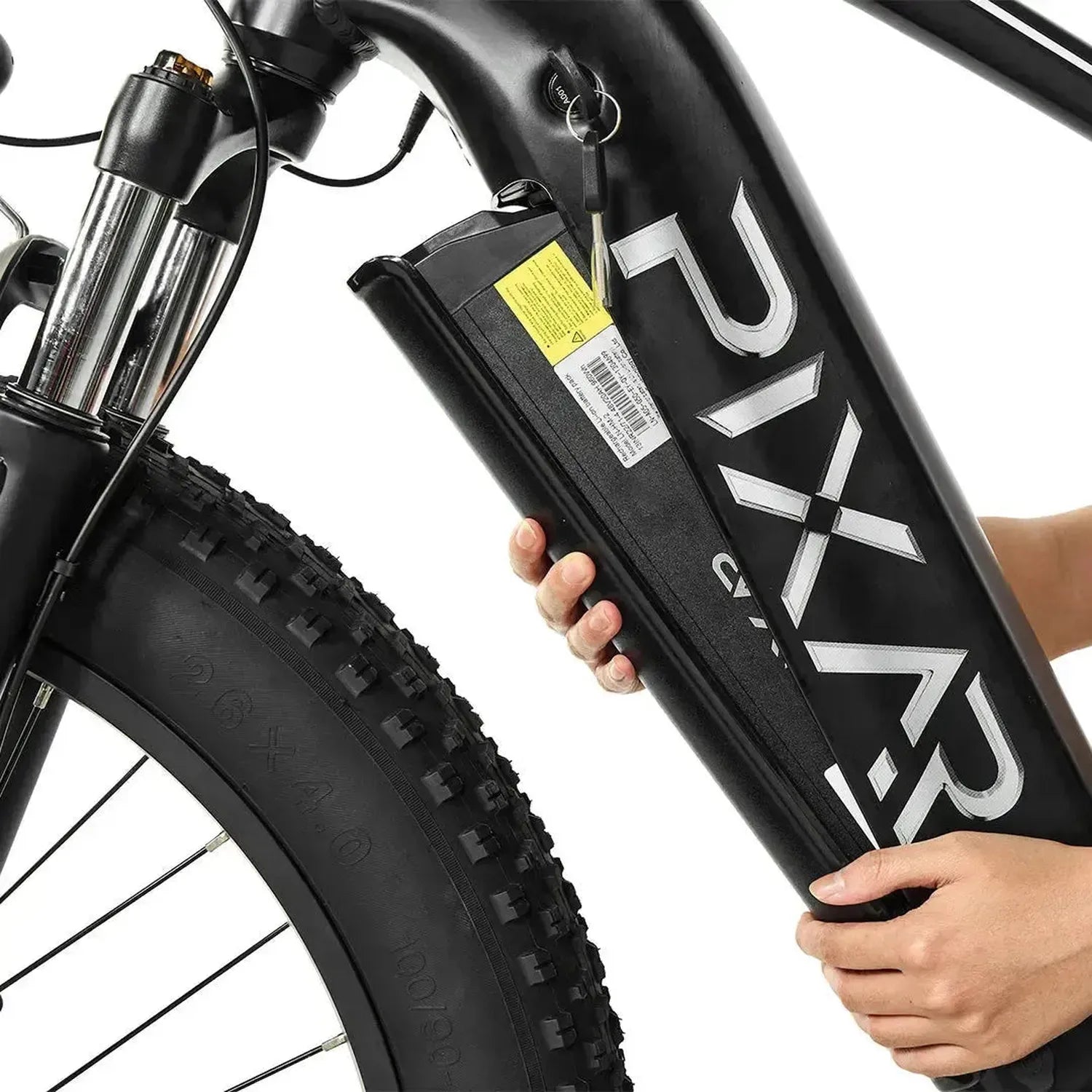

Is the battery removable?

Yes, the battery can be removed for easier charging.

Is the PIXAR Space1 good for commuting and mixed terrain?

Yes, the fat tyres, large battery, Shimano gearing, and sturdy frame make it a strong option for commuting, longer rides, and light off-road use.

What colours does the PIXAR Space1 come in?

Black and Silver.
